big Red Legacy air Winches Click for Larger View

Call us TODAY at 727-835-0674 or
Toll Free at 800-761-4298

Get A Free Quote!

2 Year Warranty *Optional 5 Year Warranty Available



Easy Access Drain and Fill Plug Configuration provides easier access for maintenance; drain and fill plus now located outside of the drum, eliminating the need to remove wire rope for maintenance.
Rotary Cable Anchor Innovative cable anchor design is self-adjusting for various cable sizes. Anchor is corrosion resistant for operation in harsh environments.
Meets ASME B30.7 Requirements Standard units designed and built to meet this specification.
Two-Year Warranty Leading the industry with our Move It with Confidence Two-Year Limited Warranty.

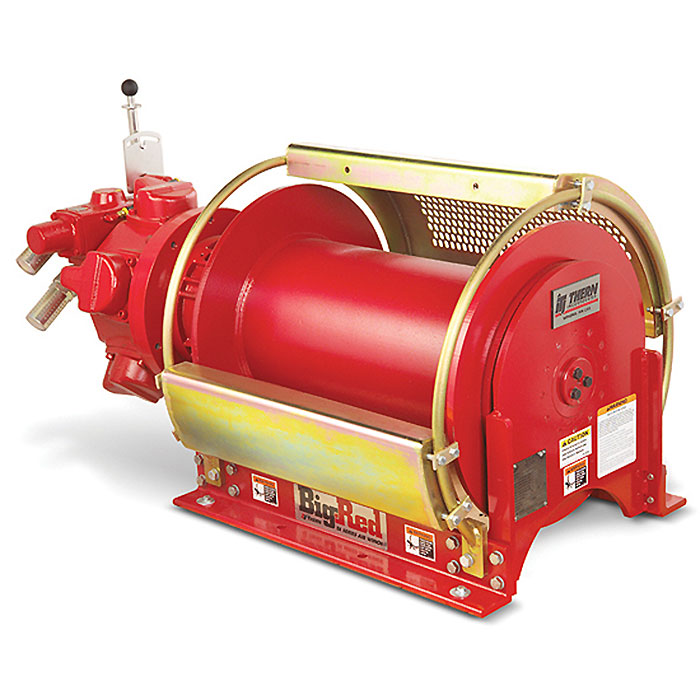

Thern Big Red TA Legacy Series Air Winches

Up to 21,800 lb. capacity

Tough conditions demand tough winches — like the Big Red Legacy TA series from Thern. Much more than reliable, the Legacy TA series allows you to customize your winch, giving you the right tool for the job.

Features:

Automatic Disc Brake Spring engaged, air pressure released and oil cooled for extended duty cycles and long life.
Automatic Band Brake Spring engaged, air pressure released, with heavy-duty construction that provides up to 150% holding capacity (replaces manual band brake).
Mufflers Attached to exhaust ports to reduce noise.
Control Options Winch mounted, full flow remote pendant control valve.
Marine Grade Epoxy Applied with a zinc primer for ultimate protection in harsh environments.
Drum Guard Heavy-duty steel mesh helps to protect operators. Adjusts for different rope payout angles.
Filter, Regulator and Lubricator Easy access brake adjustment requires no special tools Up to 96% band brake drum coverage provides maximum stopping power with minimal effort for both manual or automatic brake operation. The new brake is quieter and requires fewer adjustments.
Multiple Drum Compartments Allow for multiple line connections and operation.
High Capacity Radial Piston Motor Internally lubricated for reliable power and long service life providing high capacity with faster line speeds.
Precise Control Valve Count on smooth control with variable speed, making it ideal for both precision spotting and long lifts.
Welded Steel Frame Captures both drum ends for optimal strength and security.
Planetary Gears Compact design and high efficiency gearing reduce power loss and heat generation while increasing service life. Gears operate in oil bath. Double lip oil seals keep oil in and contaminants out.

2 Year Warranty important


  • Line Guide Steel construction and hand operated to help wire rope unwind uniformly.
  • Stackable Construction Winch Cage Protects motor and winch during operation. Movable with forklift.
  • Mufflers Attached to the exhaust ports to reduce noise.
  • Filter, Regulator and Lubricator Maintains air quality to the winch. Required for warranty compliance.
  • Drum Guard Heavy-duty steel mesh helps to protect operators. Adjusts for different rope payout angles.
  • Automatic Disc Brake Spring engaged, air pressure released and oil cooled for extended duty cycles and long life.
  • Automatic Band Brake Spring engaged, air pressure released, with heavy-duty construction that provides up to 150% holding capacity (replaces manual brake).
  • Multiple Drum Compartments Allow for multiple line connections and operation.
  • Control Options Winch mounted, full flow remote pendant control valve.
  • Marine Grade Epoxy Applied with a zinc primer for ultimate protection in harsh environments.
  • Wire Rope Assemblies
  • Wire Rope Primer
