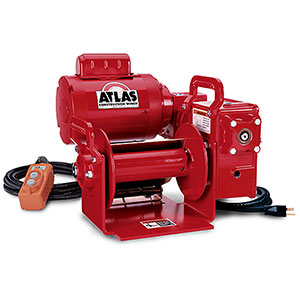

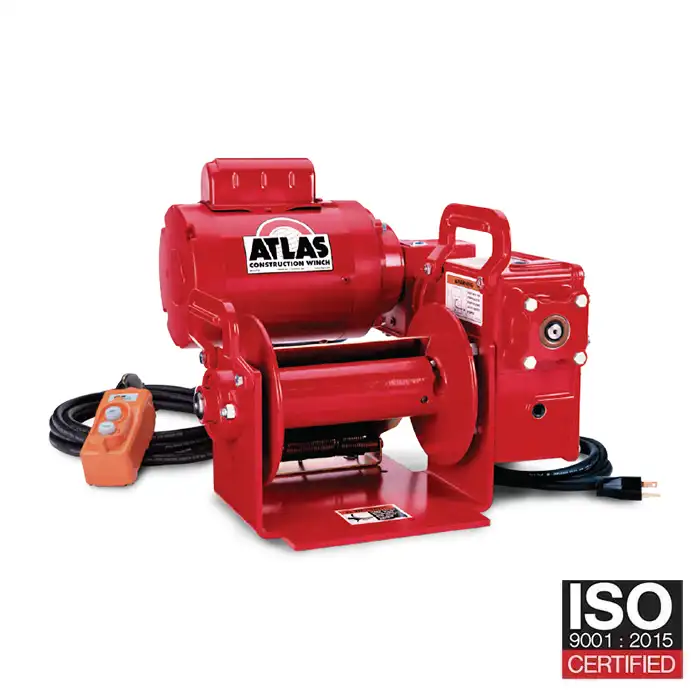

Thern Atlas 4WP2 and 4WP2T Series Worm Gear Portable Power Winches

Up to 2000 lbs. Capacity

Thern Atlas winches give you lifting power when and where you need it. Convenient lifting handles and pendant control make positioning and operation super convenient.

Features:

• 115 Volt Single Phase Electric Motor includes power cord with grounded plug and a momentary contact-type push button pendant control on a control cord.
• Machine Cut Worm Gears provide accurate operation and long lasting service.
• Enclosed Oil Bath provides continuous lubrication of gears to minimize wear. Oil seals keep oil in and dirt out.
• Internal Mechanical Brake provides positive load control for lifting and lowering operations.
• Ball Bearings and self-aligning bronze bearings provide smooth and efficient operation.
• Pressure Plate on series 4WP2T8 only, applies pressure to drum and wire rope to help maintain uniform winding.
• Dual Function Cable Anchor for quick disconnect of wire rope with swaged ball fitting, or recessed cable anchor with set screw for wire rope with unfinished end.
• Mounting Options include floor, wall, or ceiling.
• Two-year Limited Warranty
• Cast Aluminum construction for lightweight strength.
• Corrosion Resistant durable paint finish protects against corrosion in harsh environments.
• Large Diameter Drums minimize wear to the wire rope and help extend its life.
• Clutch Model allows operator to manually disengage the drum to rapidly unwind wire rope. Clutch models do not include pressure plates.

2 Year Warranty important


  • Emergency Hand Crank for manual operation in case of power failure.
  • Two-Part Line Kit to convert to double line rigging. Not available for 4WP2 Series.
  • Rotary Limit Switches for secondary shut-off to limit load travel in one or two directions. Not available on clutch models.

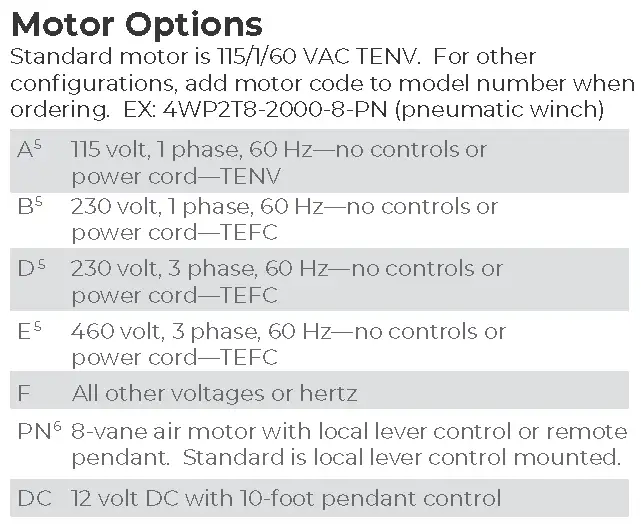

  • Special Motors and Controls including severe duty and explosion proof.
  • Special Finishes for hazardous environments.
  • Torque Limiters as part of the motor controls on electric models.
  • Wire Rope Assemblies
  • Wire Rope Primer
